libsidplayfp::SidTuneBase Class Reference

#include <SidTuneBase.h>

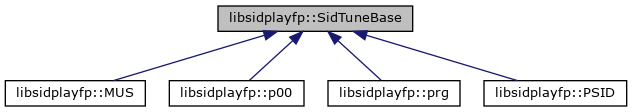

Inheritance diagram for libsidplayfp::SidTuneBase:

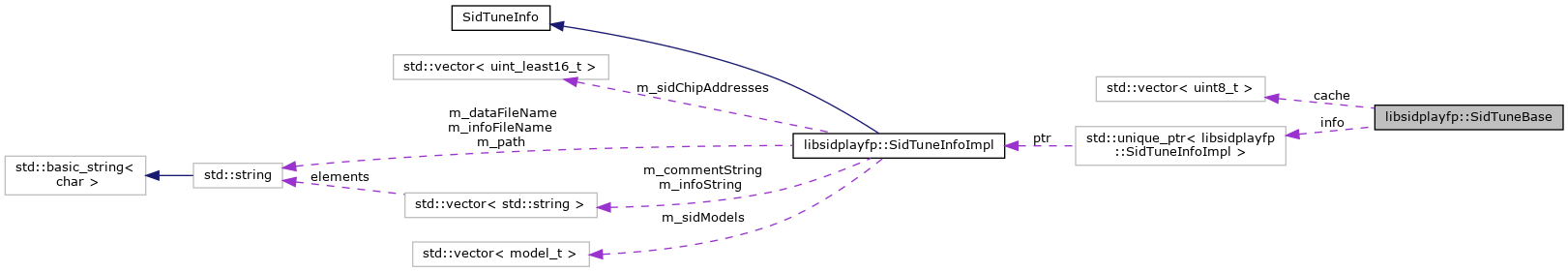

Collaboration diagram for libsidplayfp::SidTuneBase:

Public Member Functions
unsigned int	selectSong (unsigned int songNum)
const SidTuneInfo *	getInfo () const
const SidTuneInfo *	getInfo (unsigned int songNum)
virtual void	placeSidTuneInC64mem (sidmemory &mem)
virtual const char *	createMD5 (char *)
virtual const char *	createMD5New (char *)
const uint_least8_t *	c64Data () const

Static Public Member Functions
static SidTuneBase *	load (const char *fileName, const char **fileNameExt, bool separatorIsSlash)
static SidTuneBase *	read (const uint_least8_t *sourceBuffer, uint_least32_t bufferLen)

Protected Types
typedef std::vector< uint8_t >	buffer_t

Protected Member Functions
void	convertOldStyleSpeedToTables (uint_least32_t speed, SidTuneInfo::clock_t clock=SidTuneInfo::CLOCK_PAL)
bool	checkCompatibility ()
bool	checkRelocInfo ()
void	resolveAddrs (const uint_least8_t *c64data)
virtual void	acceptSidTune (const char *dataFileName, const char *infoFileName, buffer_t &buf, bool isSlashedFileName)
std::string	petsciiToAscii (SmartPtr_sidtt< const uint8_t > &spPet)

Static Protected Member Functions
static void	loadFile (const char *fileName, buffer_t &bufferRef)

Protected Attributes
std::unique_ptr< SidTuneInfoImpl >	info
uint_least8_t	songSpeed [MAX_SONGS]
SidTuneInfo::clock_t	clockSpeed [MAX_SONGS]
uint_least32_t	fileOffset
	For files with header: offset to real data.
buffer_t	cache

Static Protected Attributes
static const unsigned int	MAX_SONGS = 256
	Also PSID file format limit.
static const char	ERR_TRUNCATED [] = "SIDTUNE ERROR: File is most likely truncated"
static const char	ERR_INVALID [] = "SIDTUNE ERROR: File contains invalid data"

Detailed Description

SidTuneBaseBase

Member Function Documentation

acceptSidTune()

void libsidplayfp::SidTuneBase::acceptSidTune ( const char *  dataFileName, const char *  infoFileName, buffer_t &  buf, bool  isSlashedFileName  )

protectedvirtual

Cache the data of a single-file or two-file sidtune and its corresponding file names.

Parameters

dataFileName
infoFileName
buf
isSlashedFileName	If your opendir() and readdir()->d_name return path names that contain the forward slash (/) as file separator, but your operating system uses a different character, there are extra functions that can deal with this special case. Set separatorIsSlash to true if you like path names to be split correctly. You do not need these extra functions if your systems file separator is the forward slash.

Exceptions

loadError

Reimplemented in libsidplayfp::MUS.

c64Data()

const uint_least8_t* libsidplayfp::SidTuneBase::c64Data ( ) const

inline

Get the pointer to the tune data.

checkCompatibility()

bool libsidplayfp::SidTuneBase::checkCompatibility ( )

protected

Check if compatibility constraints are fulfilled.

checkRelocInfo()

bool libsidplayfp::SidTuneBase::checkRelocInfo ( )

protected

Check for valid relocation information.

convertOldStyleSpeedToTables()

void libsidplayfp::SidTuneBase::convertOldStyleSpeedToTables ( uint_least32_t  speed, SidTuneInfo::clock_t  clock = SidTuneInfo::CLOCK_PAL  )

protected

Convert 32-bit PSID-style speed word to internal tables.

Parameters

speed
clock

createMD5()

virtual const char* libsidplayfp::SidTuneBase::createMD5 ( char *  )

inlinevirtual

Calculates the MD5 hash of the tune. Not providing an md5 buffer will cause the internal one to be used. If provided, buffer must be MD5_LENGTH + 1

Returns

a pointer to the buffer containing the md5 string.

Reimplemented in libsidplayfp::PSID.

createMD5New()

virtual const char* libsidplayfp::SidTuneBase::createMD5New ( char *  )

inlinevirtual

Calculates the MD5 hash of the tune. Not providing an md5 buffer will cause the internal one to be used. If provided, buffer must be MD5_LENGTH + 1

Returns

a pointer to the buffer containing the md5 string.

Reimplemented in libsidplayfp::PSID.

getInfo() [1/2]

const SidTuneInfo * libsidplayfp::SidTuneBase::getInfo

(

)

const

Retrieve sub-song specific information.

getInfo() [2/2]

const SidTuneInfo * libsidplayfp::SidTuneBase::getInfo

(

unsigned int

songNum

)

Select sub-song (0 = default starting song) and retrieve active song information.

Parameters

songNum

load()

SidTuneBase * libsidplayfp::SidTuneBase::load ( const char *  fileName, const char **  fileNameExt, bool  separatorIsSlash  )

static

Load a sidtune from a file.

To retrieve data from standard input pass in filename "-". If you want to override the default filename extensions use this contructor. Please note, that if the specified "sidTuneFileName" does exist and the loader is able to determine its file format, this function does not try to append any file name extension. See "SidTune.cpp" for the default list of file name extensions.

Parameters

fileName
fileNameExt
separatorIsSlash

Returns

the sid tune

Exceptions

loadError

loadFile()

void libsidplayfp::SidTuneBase::loadFile ( const char *  fileName, buffer_t &  bufferRef  )

staticprotected

Does not affect status of object, and therefore can be used to load files. Error string is put into info.statusString, though.

Parameters

fileName
bufferRef

Exceptions

loadError

petsciiToAscii()

std::string libsidplayfp::SidTuneBase::petsciiToAscii ( SmartPtr_sidtt< const uint8_t > &  spPet )

protected

Petscii to Ascii converter.

placeSidTuneInC64mem()

void libsidplayfp::SidTuneBase::placeSidTuneInC64mem ( sidmemory &  mem )

virtual

Copy sidtune into C64 memory (64 KB).

Parameters

mem

Reimplemented in libsidplayfp::MUS.

read()

SidTuneBase * libsidplayfp::SidTuneBase::read ( const uint_least8_t *  sourceBuffer, uint_least32_t  bufferLen  )

static

Load a single-file sidtune from a memory buffer. Currently supported: PSID format

Parameters

sourceBuffer
bufferLen

Returns

the sid tune

Exceptions

loadError

resolveAddrs()

void libsidplayfp::SidTuneBase::resolveAddrs ( const uint_least8_t *  c64data )

protected

Common address resolution procedure.

Parameters

c64data

selectSong()

unsigned int libsidplayfp::SidTuneBase::selectSong

(

unsigned int

songNum

)

Select sub-song (0 = default starting song) and return active song number out of [1,2,..,SIDTUNE_MAX_SONGS].

Parameters

songNum

Returns

the active song

---

The documentation for this class was generated from the following files:

• SidTuneBase.h
• SidTuneBase.cpp
