#include <mos6526.h>

Inheritance diagram for libsidplayfp::TimerB:

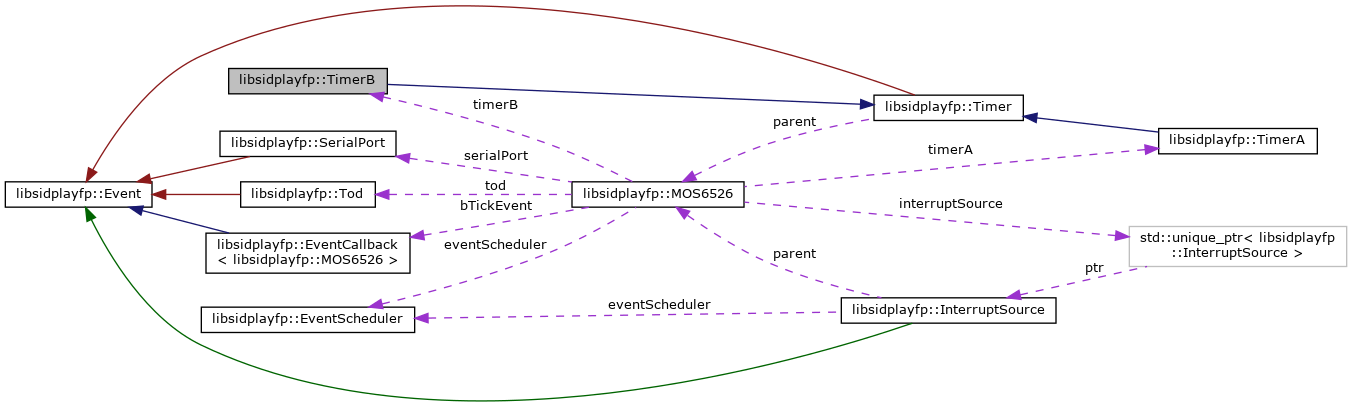

Collaboration diagram for libsidplayfp::TimerB:

[legend]

Public Member Functions
	TimerB (EventScheduler &scheduler, MOS6526 &parent)

void	cascade ()

bool	started () const

Public Member Functions inherited from libsidplayfp::Timer
void	setControlRegister (uint8_t cr)

void	syncWithCpu ()

void	wakeUpAfterSyncWithCpu ()

void	reset ()

void	latchLo (uint8_t data)

void	latchHi (uint8_t data)

void	setPbToggle (bool state)

int_least32_t	getState () const

uint_least16_t	getTimer () const

bool	getPb (uint8_t reg) const

Additional Inherited Members
Protected Member Functions inherited from libsidplayfp::Timer
	Timer (const char *name, EventScheduler &scheduler, MOS6526 &parent)

Protected Attributes inherited from libsidplayfp::Timer
MOS6526 &	parent
	Pointer to the MOS6526 which this Timer belongs to.

int_least32_t	state
	CRA/CRB control register / state.

Static Protected Attributes inherited from libsidplayfp::Timer
static const int_least32_t	CIAT_CR_START = 0x01

static const int_least32_t	CIAT_STEP = 0x04

static const int_least32_t	CIAT_CR_ONESHOT = 0x08

static const int_least32_t	CIAT_CR_FLOAD = 0x10

static const int_least32_t	CIAT_PHI2IN = 0x20

static const int_least32_t	CIAT_CR_MASK = CIAT_CR_START \| CIAT_CR_ONESHOT \| CIAT_CR_FLOAD \| CIAT_PHI2IN

static const int_least32_t	CIAT_COUNT2 = 0x100

static const int_least32_t	CIAT_COUNT3 = 0x200

static const int_least32_t	CIAT_ONESHOT0 = 0x08 << 8

static const int_least32_t	CIAT_ONESHOT = 0x08 << 16

static const int_least32_t	CIAT_LOAD1 = 0x10 << 8

static const int_least32_t	CIAT_LOAD = 0x10 << 16

static const int_least32_t	CIAT_OUT = 0x80000000

Detailed Description

This is the timer B of this CIA.

Constructor & Destructor Documentation

inline

Create timer B.

void libsidplayfp::TimerB::cascade ( )

inline

Receive an underflow from Timer A.

bool libsidplayfp::TimerB::started ( ) const

inline

Check if start flag is set.

The documentation for this class was generated from the following files:
