exSID.c File Reference

#include "exSID.h"
#include "exSID_defs.h"
#include "exSID_ftdiwrap.h"
#include <stdio.h>
#include <unistd.h>
#include <inttypes.h>

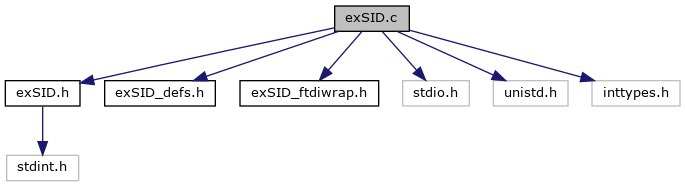

Include dependency graph for exSID.c:

Classes
struct	xSpriv_s

Macros
#define	ARRAY_SIZE(x)   (sizeof(x) / sizeof(x[0]))

Typedefs
typedef int_fast32_t	clkdrift_t

Functions
const char *	exSID_error_str (void)
int	exSID_init (void)
void	exSID_exit (void)
void	exSID_reset (uint_least8_t volume)
int	exSID_clockselect (int clock)
int	exSID_audio_op (int operation)
void	exSID_chipselect (int chip)
int	exSID_hwmodel (void)
uint16_t	exSID_hwversion (void)
void	exSID_delay (uint_fast32_t cycles)
void	exSID_clkdwrite (uint_fast32_t cycles, uint_least8_t addr, uint8_t data)
uint8_t	exSID_clkdread (uint_fast32_t cycles, uint_least8_t addr)

Variables
char	xSerrstr []
struct {
const char *   desc
const int   pid
const int   vid
const struct xSpriv_s   xsp
}	xSsupported []
const struct xSpriv_s *restrict	xSpriv

Detailed Description

exSID/exSID+ USB I/O library

Author

Thibaut VARENE

Date

2015-2018

Version

2.0

This driver will control the first exSID device available. All public API functions are only valid after a successful call to exSID_init(). To release the device and resources, exSID_exit() must be called.

Typedef Documentation

clkdrift_t

typedef int_fast32_t clkdrift_t

cycles is uint_fast32_t. Technically, clkdrift should be int_fast64_t though overflow should not happen under normal conditions.

Function Documentation

exSID_audio_op()

int exSID_audio_op

(

int

operation

)

exSID+ audio operations routine. Selects the audio mixing / muting option. Only implemented in exSID+ devices.

Warning

all these operations (excepting unmuting obviously) will mute the output by default.

Note

no accounting for SID cycles consumed.

Parameters

operation

audio operation value, see exSID.h.

Returns

execution status

exSID_chipselect()

void exSID_chipselect

(

int

chip

)

SID chipselect routine. Selects which SID will play the tunes. If neither CHIP0 or CHIP1 is chosen, both SIDs will operate together. Accounts for elapsed cycles.

Parameters

chip	SID selector value, see exSID.h.

exSID_clkdread()

uint8_t exSID_clkdread	(	uint_fast32_t	cycles,
		uint_least8_t	addr
	)

BLOCKING Timed read routine, attempts cycle-accurate reads. The following description is based on exSID (standard). This function will be cycle-accurate provided that no two consecutive reads or writes are less than XS_CYCIO apart and leftover delay is <= max_adj SID clock cycles. Read result will only be available after a full XS_CYCIO, giving clkdread() the same run time as clkdwrite(). There's a 2-cycle negative adjustment in the code because that's the actual offset from the write calls ('/' denotes falling clock edge latch), which the following ASCII tries to illustrate:
Write looks like this in firmware:

...|_/_|...

...end of data byte read | cycle during which write is enacted / next cycle | etc...
Read looks like this in firmware:

...|_|_|_/_|_|...

...end of address byte read | 2 cycles for address processing | cycle during which SID is read / then half a cycle later the CYCCHR-long data TX starts, cycle completes | another cycle | etc...
This explains why reads happen a relative 2-cycle later than then should with respect to writes.

Note

The actual time the read will take to complete depends on the USB bus activity and settings. It should complete in XS_USBLAT ms, but not less, meaning that read operations are bound to introduce timing inaccuracy. As such, this function is only really provided as a proof of concept but SHOULD BETTER BE AVOIDED.

Parameters

cycles	how many SID clocks to wait before the actual data read.
addr	target address.

Returns

data read from address.

exSID_clkdwrite()

void exSID_clkdwrite	(	uint_fast32_t	cycles,
		uint_least8_t	addr,
		uint8_t	data
	)

Timed write routine, attempts cycle-accurate writes. This function will be cycle-accurate provided that no two consecutive reads or writes are less than write_cycles apart and the leftover delay is <= max_adj SID clock cycles.

Parameters

cycles	how many SID clocks to wait before the actual data write.
addr	target address.
data	data to write at that address.

exSID_clockselect()

int exSID_clockselect

(

int

clock

)

exSID+ clock selection routine. Selects between PAL, NTSC and 1MHz clocks.

Note

upon clock change the hardware resync itself and resets the SIDs, which takes approximately 50us: this function waits for enough time before resuming execution via a call to usleep(); Output should be muted before execution

Parameters

clock

clock selector value, see exSID.h.

Returns

execution status

exSID_delay()

void exSID_delay

(

uint_fast32_t

cycles

)

Cycle accurate delay routine. Applies the most efficient strategy to delay for cycles SID clocks while leaving enough lead time for an I/O operation.

Parameters

cycles

how many SID clocks to loop for.

exSID_error_str()

const char* exSID_error_str

(

void

)

Returns a string describing the last recorded error.

Returns

error message (max 256 bytes long).

exSID_exit()

void exSID_exit

(

void

)

Device exit routine. Must be called to release the device. Resets the SIDs and clears RX/TX buffers, releases all resources allocated in exSID_init().

exSID_hwmodel()

int exSID_hwmodel

(

void

)

Device hardware model. Queries the driver for the hardware model currently identified.

Returns

hardware model as enumerated in exSID.h, negative value on error.

exSID_hwversion()

uint16_t exSID_hwversion

(

void

)

Hardware and firmware version of the device. Queries the device for the hardware revision and current firmware version and returns both in the form of a 16bit integer: MSB is an ASCII character representing the hardware revision (e.g. 0x42 = "B"), and LSB is a number representing the firmware version in decimal integer. Does NOT account for elapsed cycles.

Returns

version information as described above.

exSID_init()

int exSID_init

(

void

)

Device init routine. Must be called once before any operation is attempted on the device. Opens first available device, and sets various parameters: baudrate, parity, flow control and USB latency, and finally clears the RX and TX buffers.

Returns

0 on success, !0 otherwise.

exSID_reset()

void exSID_reset

(

uint_least8_t

volume

)

SID reset routine. Performs a hardware reset on the SIDs.

Note

since the reset procedure in firmware will stall the device, reset forcefully waits for enough time before resuming execution via a call to usleep();

Parameters

volume

volume to set the SIDs to after reset.

Variable Documentation

xSpriv

const struct xSpriv_s* restrict xSpriv

Global pointer used by all the hardware access routines

xSsupported

const { ... } xSsupported[]

Array of supported devices
