exSID_ftdiwrap.c File Reference

#include "exSID_defs.h"
#include <stdio.h>
#include "exSID_ftdiwrap.h"

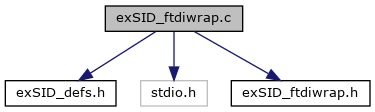

Include dependency graph for exSID_ftdiwrap.c:

Macros
#define	XSFW_WRAPDECL
#define	EXSID_INTERFACES   "libftd2xx, libftdi"
#define	_xSfw_dlopen(filename)   dlopen(filename, RTLD_NOW|RTLD_LOCAL)
#define	_xSfw_dlsym(handle, symbol)   dlsym(handle, symbol)
#define	_xSfw_dlclose(handle)   dlclose(handle)
#define	_xSfw_dlerror()   dlerror()
#define	_xSfw_clear_dlerror()   dlerror()
#define	_xSfw_free_errstr(str)   /* nothing */
#define	XSFW_DLSYM(a, b)

Enumerations
enum	libtype_t { XS_LIBNONE, XS_LIBFTDI, XS_LIBFTD2XX }

Functions
int	xSfw_dlopen ()
int	xSfw_usb_setup (void *ftdi, int baudrate, int latency)
void	xSfw_dlclose ()

Detailed Description

exSID USB FTDI access wrapper

Author

Thibaut VARENE

Date

2016

Note

Primary target is libftdi (cleaner API), adaptations are made for others. Sadly, libftdi's implementation of read() is unreliable (it doesn't seem to honour the usb timeout value and doesn't properly block long enough). This is why libftd2xx is prefered (tried first) for now. Unfortunately, using libftd2xx comes with a significant performance penalty since the code is tailored for libftdi.

Macro Definition Documentation

XSFW_DLSYM

#define XSFW_DLSYM	(		a,
			b
	)

Value:

        *(void **)(&a) = _xSfw_dlsym(dlhandle, b);      \
        if (a == NULL) {        \
                dlerrorstr = _xSfw_dlerror();   \
                goto dlfail;    \
        }

Enumeration Type Documentation

libtype_t

enum libtype_t

Flag to signal which of the supported libraries is in use

Function Documentation

xSfw_dlclose()

void xSfw_dlclose

(

)

Release dlopen'd library.

xSfw_dlopen()

int xSfw_dlopen

(

)

Attempt to dlopen a known working library to access FTDI chip. Will try libftd2xx first, then libftdi.

Returns

0 on success, -1 on error.

xSfw_usb_setup()

int xSfw_usb_setup	(	void *	ftdi,
		int	baudrate,
		int	latency
	)

Setup FTDI chip to match exSID firmware. Defaults to 8N1, no flow control.

Parameters

ftdi	ftdi handle
baudrate	Target baudrate
latency	Target latency

Returns

0 on success, rval on error.
