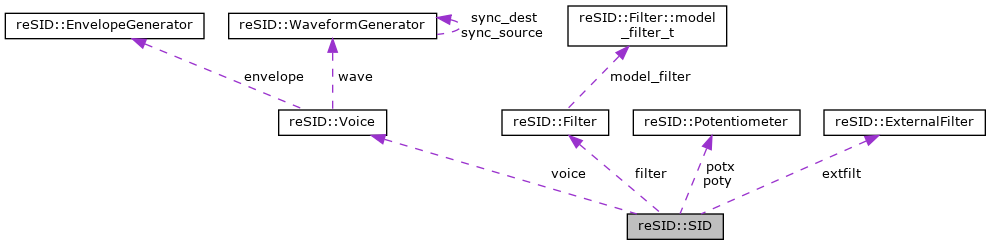

Collaboration diagram for reSID::SID:
Classes | |
| class | State |
Public Member Functions | |
| void | set_chip_model (chip_model model) |
| void | set_voice_mask (reg4 mask) |
| void | enable_filter (bool enable) |
| void | adjust_filter_bias (double dac_bias) |
| void | enable_external_filter (bool enable) |
| bool | set_sampling_parameters (double clock_freq, sampling_method method, double sample_freq, double pass_freq=-1, double filter_scale=0.97) |
| void | adjust_sampling_frequency (double sample_freq) |
| void | clock () |
| void | clock (cycle_count delta_t) |
| int | clock (cycle_count &delta_t, short *buf, int n, int interleave=1) |
| void | reset () |
| reg8 | read (reg8 offset) |
| void | write (reg8 offset, reg8 value) |
| State | read_state () |
| void | write_state (const State &state) |
| void | input (short sample) |
| short | output () |
Protected Types | |
| enum | { FIR_N = 125, FIR_RES = 285, FIR_RES_FASTMEM = 51473, FIR_SHIFT = 15, RINGSIZE = 1 << 14, RINGMASK = RINGSIZE - 1, FIXP_SHIFT = 16, FIXP_MASK = 0xffff } |
Static Protected Member Functions | |
| static double | I0 (double x) |
Protected Attributes | |
| chip_model | sid_model |
| Voice | voice [3] |
| Filter | filter |
| ExternalFilter | extfilt |
| Potentiometer | potx |
| Potentiometer | poty |
| reg8 | bus_value |
| cycle_count | bus_value_ttl |
| cycle_count | databus_ttl |
| cycle_count | write_pipeline |
| reg8 | write_address |
| double | clock_frequency |
| sampling_method | sampling |
| cycle_count | cycles_per_sample |
| cycle_count | sample_offset |
| int | sample_index |
| short | sample_prev |
| short | sample_now |
| int | fir_N |
| int | fir_RES |
| double | fir_beta |
| double | fir_f_cycles_per_sample |
| double | fir_filter_scale |
| short * | sample |
| short * | fir |
The documentation for this class was generated from the following files:
- sid.h
- sid.cc
