ReSIDBuilder Class Reference

#include <resid.h>

Inheritance diagram for ReSIDBuilder:

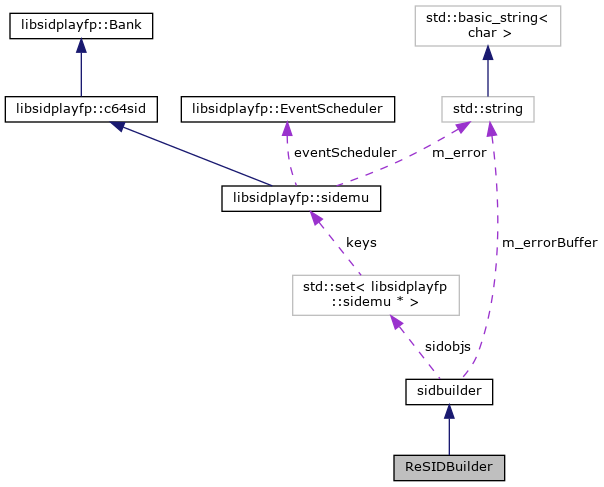

Collaboration diagram for ReSIDBuilder:

Public Member Functions
	ReSIDBuilder (const char *const name)
unsigned int	availDevices () const
unsigned int	create (unsigned int sids)
const char *	credits () const
global settings
Settings that affect all SIDs
void	filter (bool enable)
void	bias (double dac_bias)
Public Member Functions inherited from sidbuilder
	sidbuilder (const char *const name)
unsigned int	usedDevices () const
libsidplayfp::sidemu *	lock (libsidplayfp::EventScheduler *scheduler, SidConfig::sid_model_t model, bool digiboost)
void	unlock (libsidplayfp::sidemu *device)
void	remove ()
const char *	name () const
const char *	error () const
bool	getStatus () const

Additional Inherited Members
Protected Types inherited from sidbuilder
typedef std::set< libsidplayfp::sidemu * >	emuset_t
Protected Attributes inherited from sidbuilder
std::string	m_errorBuffer
emuset_t	sidobjs
bool	m_status

Detailed Description

ReSID Builder Class

Member Function Documentation

availDevices()

unsigned int ReSIDBuilder::availDevices ( ) const

inlinevirtual

Available sids.

Returns

the number of available sids, 0 = endless.

Implements sidbuilder.

bias()

void ReSIDBuilder::bias

(

double

dac_bias

)

The bias is given in millivolts, and a maximum reasonable control range is approximately -500 to 500.

create()

unsigned int ReSIDBuilder::create ( unsigned int  sids )

virtual

Create the sid emu.

Parameters

sids	the number of required sid emu

Returns

the number of actually created sid emus

Implements sidbuilder.

credits()

const char * ReSIDBuilder::credits ( ) const

virtual

Get the builder's credits.

Returns

credits

Implements sidbuilder.

filter()

void ReSIDBuilder::filter ( bool  enable )

virtual

enable/disable filter.

Implements sidbuilder.

---

The documentation for this class was generated from the following files:

• resid.h
• resid-builder.cpp
