SidConfig Class Reference

#include <SidConfig.h>

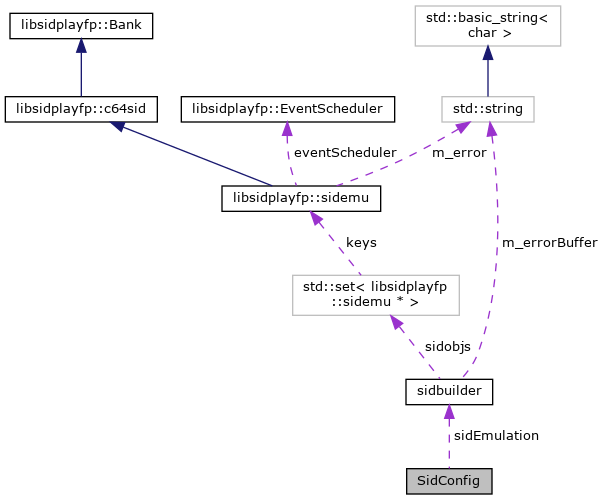

Collaboration diagram for SidConfig:

Public Types
enum	playback_t { MONO = 1, STEREO }
	Playback mode.
enum	sid_model_t { MOS6581, MOS8580 }
	SID chip model.
enum	cia_model_t { MOS6526, MOS8521 }
	CIA chip model.
enum	c64_model_t {   PAL, NTSC, OLD_NTSC, DREAN,   PAL_M }
	C64 model.
enum	sampling_method_t { INTERPOLATE, RESAMPLE_INTERPOLATE }
	Sampling method.

Public Member Functions
bool	compare (const SidConfig &config)

Public Attributes
c64_model_t	defaultC64Model
bool	forceC64Model
sid_model_t	defaultSidModel
bool	forceSidModel
bool	digiBoost
cia_model_t	ciaModel
playback_t	playback
uint_least32_t	frequency
uint_least16_t	secondSidAddress
uint_least16_t	thirdSidAddress
sidbuilder *	sidEmulation
uint_least32_t	leftVolume
uint_least32_t	rightVolume
uint_least16_t	powerOnDelay
sampling_method_t	samplingMethod
bool	fastSampling

Static Public Attributes
static const uint_least16_t	MAX_POWER_ON_DELAY = 0x1FFF
static const uint_least16_t	DEFAULT_POWER_ON_DELAY = MAX_POWER_ON_DELAY + 1
static const uint_least32_t	DEFAULT_SAMPLING_FREQ = 44100

Detailed Description

SidConfig

An instance of this class is used to transport emulator settings to and from the interface class.

Examples

demo.cpp.

Member Function Documentation

compare()

bool SidConfig::compare

(

const SidConfig &

config

)

Compare two config objects.

Returns

true if different

Member Data Documentation

ciaModel

cia_model_t SidConfig::ciaModel

Intended cia model.

• MOS6526
• MOS8521

defaultC64Model

c64_model_t SidConfig::defaultC64Model

Intended c64 model when unknown or forced.

• PAL
• NTSC
• OLD_NTSC
• DREAN
• PAL_M

defaultSidModel

sid_model_t SidConfig::defaultSidModel

Intended sid model when unknown or forced.

• MOS6581
• MOS8580

digiBoost

bool SidConfig::digiBoost

Enable digiboost when 8580 SID model is used.

fastSampling

bool SidConfig::fastSampling

Faster low-quality emulation, available only for reSID.

Examples

demo.cpp.

forceC64Model

bool SidConfig::forceC64Model

Force the model to defaultC64Model ignoring tune's clock setting.

forceSidModel

bool SidConfig::forceSidModel

Force the sid model to defaultSidModel.

frequency

uint_least32_t SidConfig::frequency

Sampling frequency.

Examples

demo.cpp.

leftVolume

uint_least32_t SidConfig::leftVolume

Left channel volume.

MAX_POWER_ON_DELAY

const uint_least16_t SidConfig::MAX_POWER_ON_DELAY = 0x1FFF

static

Maximum power on delay.

• Delays <= MAX produce constant results
• Delays > MAX produce random results

playback

playback_t SidConfig::playback

Playbak mode.

• MONO
• STEREO

Examples

demo.cpp.

powerOnDelay

uint_least16_t SidConfig::powerOnDelay

Power on delay cycles.

rightVolume

uint_least32_t SidConfig::rightVolume

Right channel volume.

samplingMethod

sampling_method_t SidConfig::samplingMethod

Sampling method.

• INTERPOLATE
• RESAMPLE_INTERPOLATE

Examples

demo.cpp.

secondSidAddress

uint_least16_t SidConfig::secondSidAddress

Extra SID chips addresses.

sidEmulation

sidbuilder* SidConfig::sidEmulation

Pointer to selected emulation, reSIDfp, reSID or hardSID.

Examples

demo.cpp.

---

The documentation for this class was generated from the following files:

• SidConfig.h
• SidConfig.cpp
