sidbuilder Class Reference

#include <sidbuilder.h>

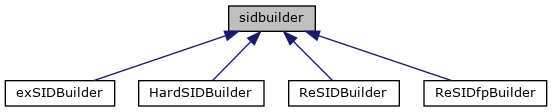

Inheritance diagram for sidbuilder:

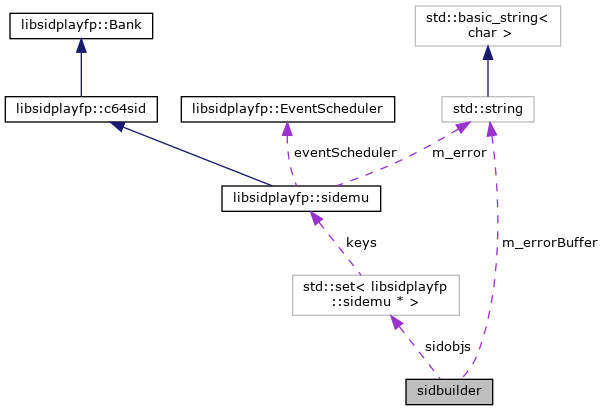

Collaboration diagram for sidbuilder:

Classes
class	applyParameter

Public Member Functions
	sidbuilder (const char *const name)
unsigned int	usedDevices () const
virtual unsigned int	availDevices () const =0
virtual unsigned int	create (unsigned int sids)=0
libsidplayfp::sidemu *	lock (libsidplayfp::EventScheduler *scheduler, SidConfig::sid_model_t model, bool digiboost)
void	unlock (libsidplayfp::sidemu *device)
void	remove ()
const char *	name () const
const char *	error () const
bool	getStatus () const
virtual const char *	credits () const =0
virtual void	filter (bool enable)=0

Protected Types
typedef std::set< libsidplayfp::sidemu * >	emuset_t

Protected Attributes
std::string	m_errorBuffer
emuset_t	sidobjs
bool	m_status

Detailed Description

Base class for sid builders.

Member Function Documentation

availDevices()

virtual unsigned int sidbuilder::availDevices ( ) const

pure virtual

Available devices.

Returns

the number of available sids, 0 = endless.

Implemented in HardSIDBuilder, exSIDBuilder, ReSIDBuilder, and ReSIDfpBuilder.

create()

virtual unsigned int sidbuilder::create ( unsigned int  sids )

pure virtual

Create the sid emu.

Parameters

sids	the number of required sid emu

Returns

the number of actually created sid emus

Implemented in HardSIDBuilder, exSIDBuilder, ReSIDfpBuilder, and ReSIDBuilder.

credits()

virtual const char* sidbuilder::credits ( ) const

pure virtual

Get the builder's credits.

Returns

credits

Implemented in HardSIDBuilder, ReSIDfpBuilder, exSIDBuilder, and ReSIDBuilder.

error()

const char* sidbuilder::error ( ) const

inline

Error message.

Returns

string error message.

filter()

virtual void sidbuilder::filter ( bool  enable )

pure virtual

Toggle sid filter emulation.

Parameters

enable

true = enable, false = disable

Implemented in HardSIDBuilder, ReSIDfpBuilder, exSIDBuilder, and ReSIDBuilder.

getStatus()

bool sidbuilder::getStatus ( ) const

inline

Determine current state of object.

Returns

true = okay, false = error

lock()

libsidplayfp::sidemu * sidbuilder::lock	(	libsidplayfp::EventScheduler *	scheduler,
		SidConfig::sid_model_t	model,
		bool	digiboost
	)

Find a free SID of the required specs

Parameters

env	the event context
model	the required sid model
digiboost	whether to enable digiboost for 8580

Returns

pointer to the locked sid emu

name()

const char* sidbuilder::name ( ) const

inline

Get the builder's name.

Returns

the name

remove()

void sidbuilder::remove

(

)

Remove all SID emulations.

unlock()

void sidbuilder::unlock

(

libsidplayfp::sidemu *

device

)

Release this SID.

Parameters

device

the sid emu to unlock

usedDevices()

unsigned int sidbuilder::usedDevices ( ) const

inline

The number of used devices.

Returns

number of used sids, 0 if none.

---

The documentation for this class was generated from the following files:

• sidbuilder.h
• sidbuilder.cpp
