ReSIDfpBuilder Class Reference

#include <residfp.h>

Inheritance diagram for ReSIDfpBuilder:

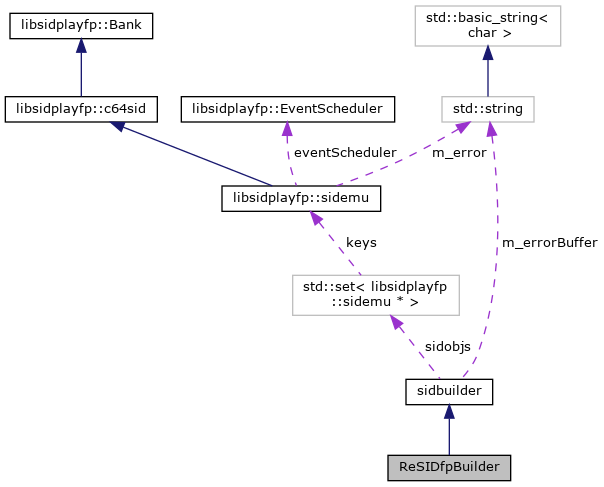

Collaboration diagram for ReSIDfpBuilder:

Public Member Functions
	ReSIDfpBuilder (const char *const name)
unsigned int	availDevices () const
unsigned int	create (unsigned int sids)
const char *	credits () const
global settings
Settings that affect all SIDs.
void	filter (bool enable)
void	filter6581Curve (double filterCurve)
void	filter8580Curve (double filterCurve)
Public Member Functions inherited from sidbuilder
	sidbuilder (const char *const name)
unsigned int	usedDevices () const
libsidplayfp::sidemu *	lock (libsidplayfp::EventScheduler *scheduler, SidConfig::sid_model_t model, bool digiboost)
void	unlock (libsidplayfp::sidemu *device)
void	remove ()
const char *	name () const
const char *	error () const
bool	getStatus () const

Additional Inherited Members
Protected Types inherited from sidbuilder
typedef std::set< libsidplayfp::sidemu * >	emuset_t
Protected Attributes inherited from sidbuilder
std::string	m_errorBuffer
emuset_t	sidobjs
bool	m_status

Detailed Description

ReSIDfp Builder Class

Examples

demo.cpp.

Member Function Documentation

availDevices()

unsigned int ReSIDfpBuilder::availDevices ( ) const

inlinevirtual

Available sids.

Returns

the number of available sids, 0 = endless.

Implements sidbuilder.

create()

unsigned int ReSIDfpBuilder::create ( unsigned int  sids )

virtual

Create the sid emu.

Parameters

sids	the number of required sid emu

Implements sidbuilder.

credits()

const char * ReSIDfpBuilder::credits ( ) const

virtual

Get the builder's credits.

Returns

credits

Implements sidbuilder.

filter()

void ReSIDfpBuilder::filter ( bool  enable )

virtual

enable/disable filter.

Implements sidbuilder.

filter6581Curve()

void ReSIDfpBuilder::filter6581Curve

(

double

filterCurve

)

Set 6581 filter curve.

Parameters

filterCurve

from 0.0 (light) to 1.0 (dark) (default 0.5)

filter8580Curve()

void ReSIDfpBuilder::filter8580Curve

(

double

filterCurve

)

Set 8580 filter curve.

Parameters

filterCurve

curve center frequency (default 12500)

---

The documentation for this class was generated from the following files:

• residfp.h
• residfp-builder.cpp
