#include <c64cia.h>

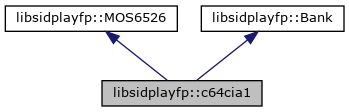

Inheritance diagram for libsidplayfp::c64cia1:

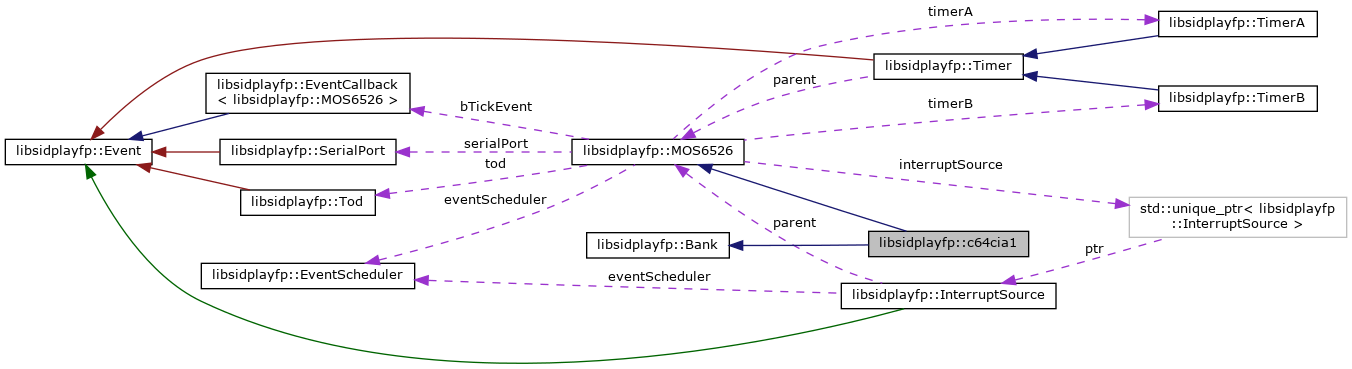

Collaboration diagram for libsidplayfp::c64cia1:

[legend]

Public Member Functions
	c64cia1 (c64env &env)

void	poke (uint_least16_t address, uint8_t value) override

uint8_t	peek (uint_least16_t address) override

void	reset () override

uint_least16_t	getTimerA () const

Public Member Functions inherited from libsidplayfp::MOS6526
void	setModel (bool newModel)

void	setDayOfTimeRate (unsigned int clock)

Protected Member Functions
void	interrupt (bool state) override

void	portB () override

Protected Member Functions inherited from libsidplayfp::MOS6526
	MOS6526 (EventScheduler &scheduler)

virtual void	portA ()

uint8_t	read (uint_least8_t addr)

void	write (uint_least8_t addr, uint8_t data)

Additional Inherited Members
Static Public Member Functions inherited from libsidplayfp::MOS6526
static const char *	credits ()

Protected Attributes inherited from libsidplayfp::MOS6526
EventScheduler &	eventScheduler
	Event context.

uint8_t &	pra
	Ports.

uint8_t &	prb

uint8_t &	ddra

uint8_t &	ddrb

uint8_t	regs [0x10]
	These are all CIA registers.

TimerA	timerA
	Timers A and B.

TimerB	timerB

std::unique_ptr< InterruptSource >	interruptSource
	Interrupt Source.

Tod	tod
	TOD.

SerialPort	serialPort
	Serial Data Registers.

EventCallback< MOS6526 >	bTickEvent
	Events.

Detailed Description

CIA 1

Generates IRQs

Located at $DC00-$DCFF

Member Function Documentation

◆ interrupt()

void libsidplayfp::c64cia1::interrupt ( bool state )

inlineoverrideprotectedvirtual

Signal interrupt.

Parameters

state interrupt state

Implements libsidplayfp::MOS6526.

◆ peek()

uint8_t libsidplayfp::c64cia1::peek ( uint_least16_t address )

inlineoverridevirtual

Bank read. You probably should override this method, except if the Bank is only used in write context.

Parameters

address value to read from

Returns: value at address

Implements libsidplayfp::Bank.

◆ poke()

void libsidplayfp::c64cia1::poke	(	uint_least16_t	address,
		uint8_t	value
	)

inlineoverridevirtual

Bank write.

Override this method if you expect write operations on your bank. Leave unimplemented if it's logically/operationally impossible for writes to ever arrive to bank.

Parameters
