libsidplayfp::Bank Class Reference

#include <Bank.h>

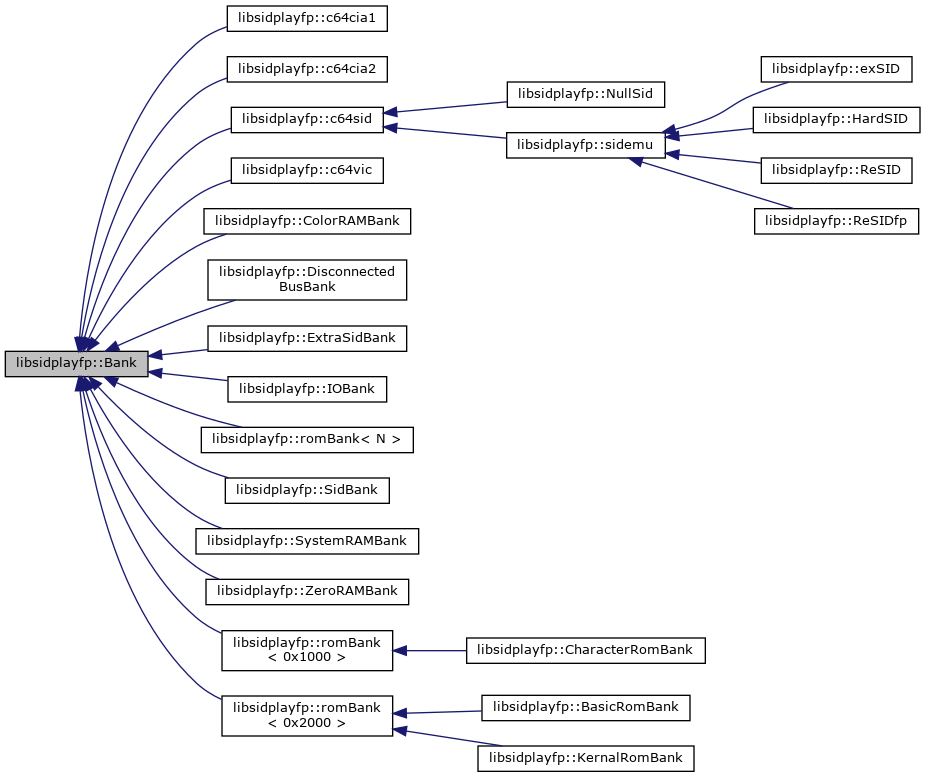

Inheritance diagram for libsidplayfp::Bank:

Public Member Functions
virtual void	poke (uint_least16_t address, uint8_t value)=0
virtual uint8_t	peek (uint_least16_t address)=0

Detailed Description

Base interface for memory and I/O banks.

Member Function Documentation

peek()

virtual uint8_t libsidplayfp::Bank::peek ( uint_least16_t  address )

pure virtual

Bank read. You probably should override this method, except if the Bank is only used in write context.

Parameters

address

value to read from

Returns

value at address

Implemented in libsidplayfp::ZeroRAMBank, libsidplayfp::c64cia2, libsidplayfp::c64cia1, libsidplayfp::romBank< N >, libsidplayfp::romBank< 0x2000 >, libsidplayfp::romBank< 0x1000 >, libsidplayfp::c64vic, libsidplayfp::SystemRAMBank, libsidplayfp::ColorRAMBank, libsidplayfp::c64sid, libsidplayfp::ExtraSidBank, libsidplayfp::IOBank, and libsidplayfp::SidBank.

poke()

virtual void libsidplayfp::Bank::poke ( uint_least16_t  address, uint8_t  value  )

pure virtual

Bank write.

Override this method if you expect write operations on your bank. Leave unimplemented if it's logically/operationally impossible for writes to ever arrive to bank.

Parameters

address	address to write to
value	value to write

Implemented in libsidplayfp::romBank< N >, libsidplayfp::romBank< 0x2000 >, libsidplayfp::romBank< 0x1000 >, libsidplayfp::ZeroRAMBank, libsidplayfp::c64cia2, libsidplayfp::c64cia1, libsidplayfp::SystemRAMBank, libsidplayfp::c64vic, libsidplayfp::ColorRAMBank, libsidplayfp::c64sid, libsidplayfp::ExtraSidBank, libsidplayfp::IOBank, and libsidplayfp::SidBank.

---

The documentation for this class was generated from the following file:

• Bank.h
